NEW
LINEAR SURFACE IP44 ZIGBEE
LN SF 600 ZB P 18W 840 WT IP44
GTIN: 4099854515033
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Suitable luminaire for DIRECT EASY / VIVARES Zigbee and other Zigbee 3.0 Light Management Systems
- Low maintenance and low operational costs
- Protection against cover falling, theft and vandalism thanks to safety screws
- Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
- Easy and quick installation
- Low flicker light thanks to special electronic control gear
Areas of application
- Efficient replacement for traditional T8 and T5 luminaires
- Public buildings
- General illumination
- Libraries, schools
Product features
- IoT-ready luminaire with Zigbee 3.0 technology
- Surface mounted luminaires with direct light emission
- Type of protection: IP44
- Impact resistance: IK08
- Available in 3 different lengths: 600 mm, 1200 mm and 1500 mm
- High luminous efficacy: up to 137 lm/W
- Through-wiring cable already installed
- Lifetime (L80/B10): 70,000 h (at 25 °C)
- White painted steel housing (like RAL: 9003)
- Diffuser material: UV-stable polycarbonate
- End caps (made of polycarbonate) screwed to the housing
Equipment / Accessories
- Equipped with through-wiring cables and connectors
- Tool-free cable strain reliefs included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 18.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 80.000 mA |
| Inrush current | < 6 A |
| Inrush current time Th50 | 190 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 63 |
| Max. number of luminaires per miniature circuit breaker C10 | 53 |
| Max. number of luminaires per miniature circuit breaker C16 | 86 |
| Power factor λ | > 0.97 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
Photometrical data
| Luminous flux | 2466 lm |
| Luminous efficacy | 137 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 3 sdcm |
| Low flicker | Yes |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 608.00 mm |
| Height | 64.00 mm |
| Width | 166.00 mm |
| Product weight | 1420.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+45 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screwless terminal, 3-POLE (L, N, PE) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | Yes |
| IoT ready | Support of Zigbee Data Clusters: 0x0302 (Luminaire Asset Management), 0x0702 (Smart Energy: Metering), 0x0B04 (Electrical Measurement) 1) |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud
Lifespan
| Lifespan L70/B50 at 25 °C | 70000 h 1) |
| Lifespan L80/B10 at 25 °C | 70000 h 1) |
| Lifespan L90/B10 at 25 °C | 50000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 440 mA |
| ECG - Output ripple current | < 5 % |
| ECG - Length | 178 mm |
| ECG - Width | 45 mm |
| ECG - Height | 25 mm |
Emergency lighting
| Type of Emergency Lighting (EL) | EL certified driver (0Hz / DC operation) for central battery operation included |
| Type of emergency operation test | None |
Certificates & Standards
| Standards | CE, UKCA, ROHS, TÜV |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Available from September 2025 |
| Added function | VIVARES |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854515033 | Folding box 1 |
621 mm x 172 mm x 70 mm | 1620.00 g | 7.48 dm³ |
| 4099854515040 | Shipping box 4 |
635 mm x 302 mm x 200 mm | 6380.00 g | 38.35 dm³ |
| Product image | Product name | Product brand | Product component type | GTIN |
|---|---|---|---|---|
|
MANUAL CONTROL UNIT SELECT DIRECT 100-240 TW RGB ZB | LEDVANCE | Light control | 4099854476334 |
|
SENSOR DIRECT LS-PD-7 IR CI ZB | LEDVANCE | Light control | 4099854476358 |
|
SWITCH KINETIC DIRECT 4B WT M ZB | LEDVANCE | Light control | 4099854589799 |
|
SWITCH KINETIC DIRECT 4B WT G ZB | LEDVANCE | Light control | 4099854589812 |
|
SWITCH KINETIC DIRECT 4B BK ZB | LEDVANCE | Light control | 4099854589836 |
|
SWITCH KINETIC DIRECT 4B GR ZB | LEDVANCE | Light control | 4099854589850 |
|
VIVARES ZB CONTROL | LEDVANCE | Light control | 4058075427488 |
|
VIVARES ZB L/O SENS 220-240 | LEDVANCE | Light control | 4058075446182 |
|
VIVARES ZB O SENS 220-240 | LEDVANCE | Light control | 4058075544222 |
|
VIVARES ZB COUPLER | LEDVANCE | Light control | 4058075463806 |
|
VIVARES ZB SENS ADAPTER | LEDVANCE | Light control | 4058075650107 |
User instruction / safety instructions
User instruction G11230681 Linear Surface P ZB
User instruction G11230681 Linear Surface P ZB
Legal information
LN SF ZB P IP44
LN SF ZB P IP44
Legal information
Safety Insert
Safety Insert
Legal information
App Download guide
App Download guide
Legal information
Safety insert G11254727
Safety insert G11254727
Declarations of conformity
LN SF ZB P WT IP44
LN SF ZB P WT IP44
EU Data Act
SMART ZigBee Lamps and Luminaires
SMART ZigBee Lamps and Luminaires
Product image: white background, diagonal
LN SF P IP44
LN SF P IP44

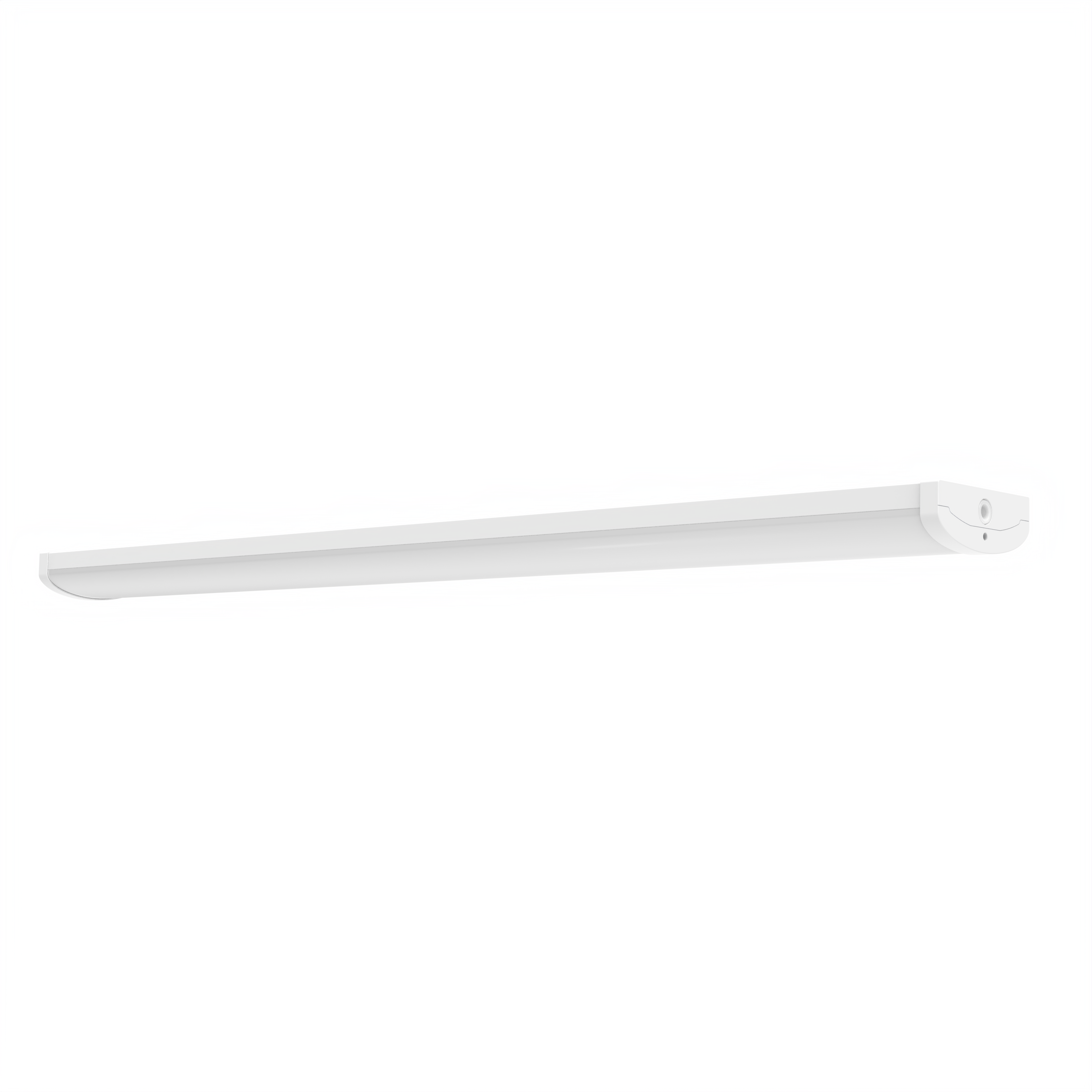

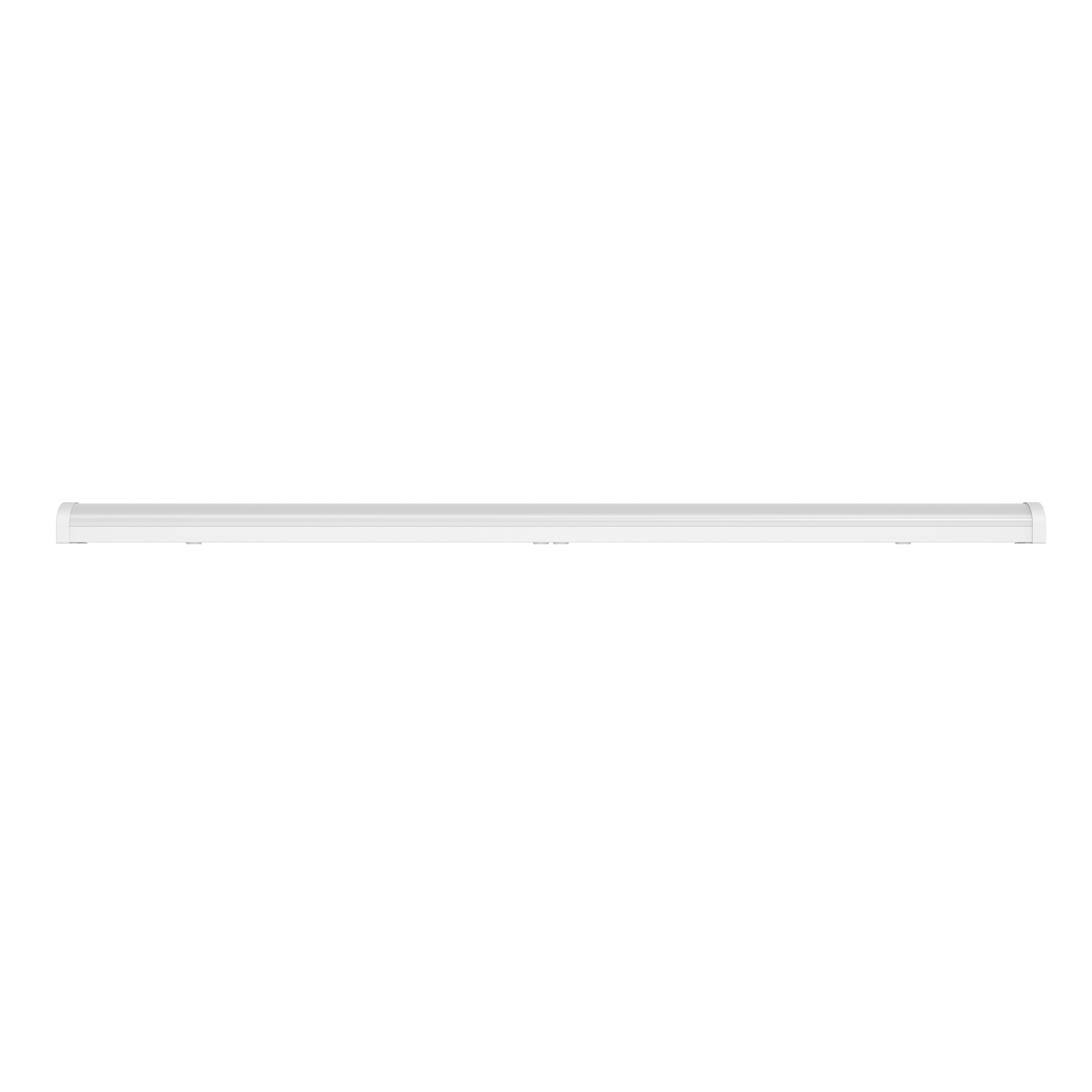

Product image: white background, horizontal
