RELAY DALI-2 RAIL MOUNTING

RELAY DALI-2 RAIL MOUNTING

GTIN: 4099854709159 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Simple integration of non-dimmable luminaires in DALI systems
  • Configurable Power-Up behaviour
  • Integrated current limiter
  • Over temperature protection for save operation
  • Supports over voltage protection for long product lifetime
  • Zero cross switching
  • Compatible with LEDVANCE VIVARES DALI light management system
Areas of application
  • Integration of non-dimmable luminaires in DALI lighting systems (DT7)
Product features
  • Installation in electrical cabinets on DIN Rails
  • Suitable for high inrush currents up to 350 A
  • Fulfills the requirements for DALI Device Type 7 - switching function
  • Switching of non-dimmable loads up to 16 A via DALI
  • Suitable for loads with high inrush current
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For current information see www.ledvance.com/light-management-systems
Electrical data
Nominal wattage 3000.00 W
Nominal voltage 230 V
Type of current AC
Nominal current 16 A
Inrush current 350 A
Mains frequency 50…60 Hz
Dimensions & Weight
Length 98.00 mm
Width 17.50 mm
Height 56.00 mm
Cable cross-section, input side 0.5…2.5 mm² 1)
Cable cross-section, output side 0.5…2.5 mm² 2)
Wire preparation length, input side 7.0 mm
Wire preparation length, output side 7.0 mm
Product weight 52.00 g
1) Solid wire: 0.5…2.5 mm² / Flexible wire: 0.5…1.5 mm²
2) Solid wire: 0.5…2.5 mm²
Colors & materials
Product color Grey
Body material Polycarbonate (PC)
Temperatures & operating conditions
Ambient temperature range -20…+60 °C
Maximum temperature at tc test point 75 °C
Lifespan
Number of switching cycles 100000
Additional product data
Product remark Available from December 2025
Number of control outputs 1
Capabilities
Dimmable Yes
Dimming interface DALI-2
Overheating protection Reversible
Type of installation Rail mounting
Reverse polarity protection Yes
Over voltage protection Yes
Certificates & Standards
Standards CE, UKCA
Protection class II
Type of protection IP20
LOGISTICAL DATA
Temperature range at storage -20…+75 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854709159 Folding box
1		 66 mm x 105 mm x 27 mm 67.00 g 0.19 dm³
4099854709166 Shipping box
100		 347 mm x 287 mm x 224 mm 6900.00 g 22.31 dm³
User instruction / safety instructions
RELAY DALI 2 RM
PDF (2.71 MB)
Legal information
Safety Insert G11201420
PDF (302.65 KB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Legal information
Legal Insert G11185544
PDF (2.33 MB)
Declarations of conformity
CE declaration RELAY DALI-2
PDF (365.73 KB)

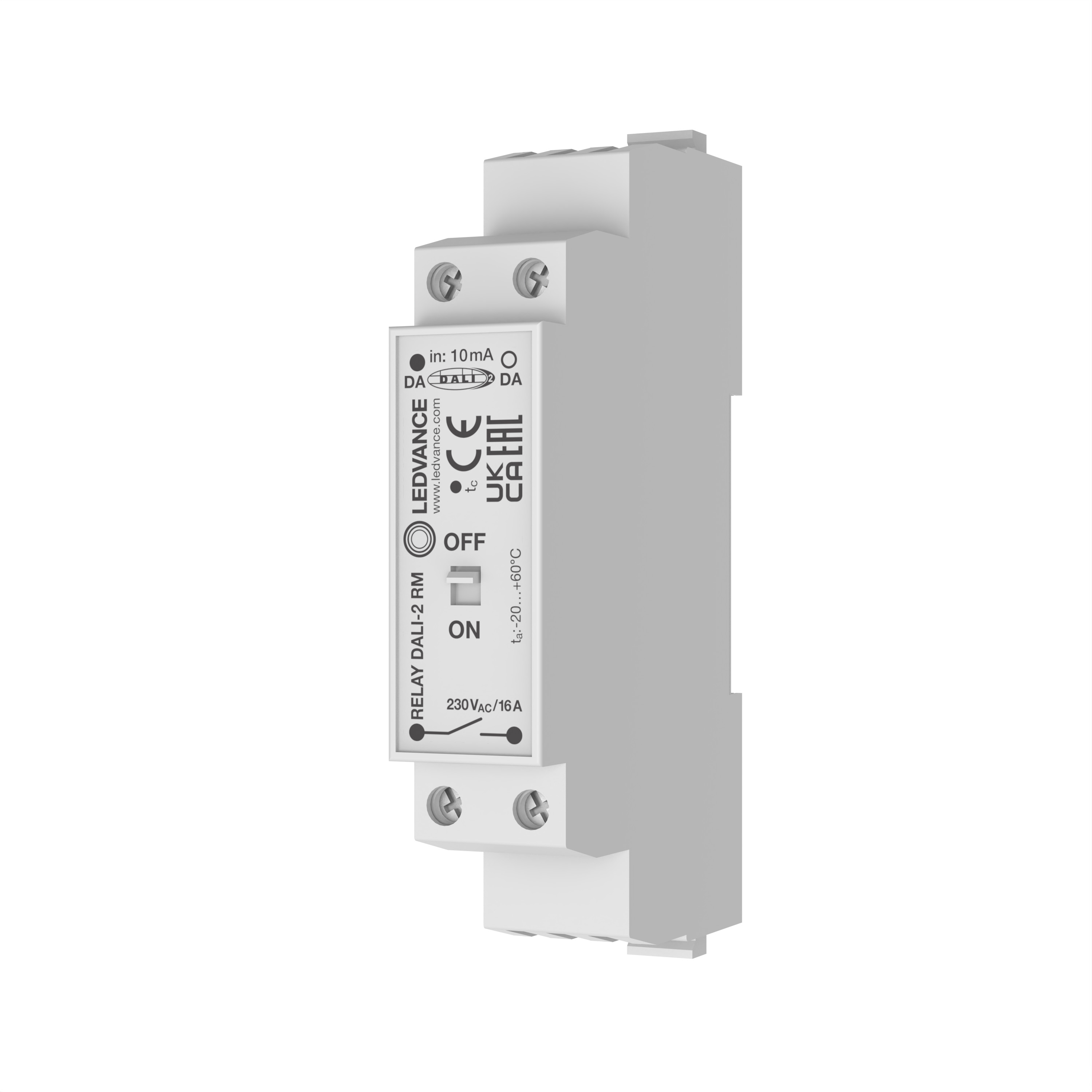

Product image: white background, diagonal
RELAY DALI-2 RM DIAGONAL
JPG (377.38 KB)

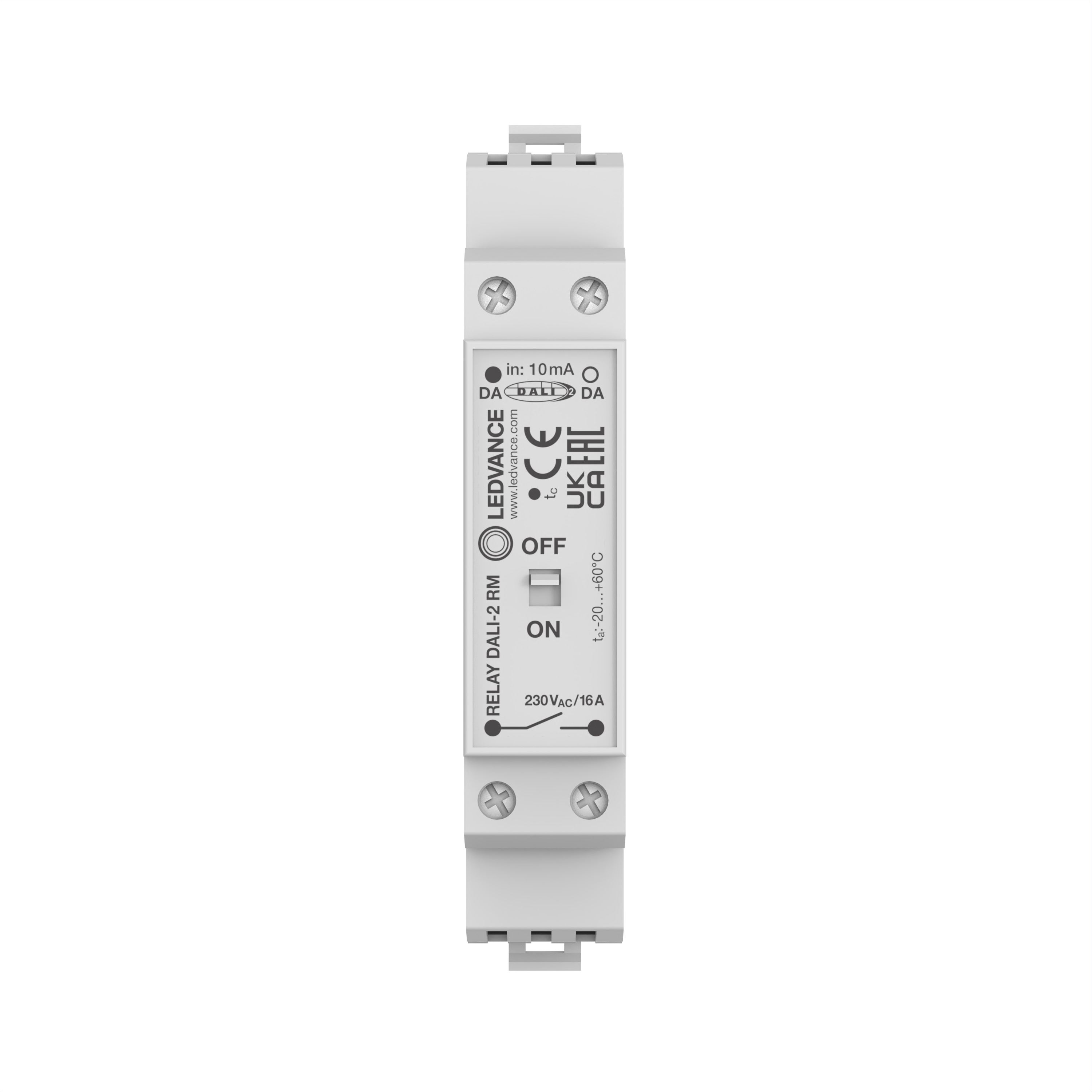

Product image: white background, upright
