RELAY DALI-2 CEILING MOUNTING
RELAY DALI-2 CEILING MOUNTING
GTIN: 4099854709135
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Simple integration of non-dimmable luminaires in DALI systems
- Configurable Power-Up behaviour
- Integrated current limiter
- Over temperature protection for save operation
- Supports over voltage protection for long product lifetime
- Zero cross switching
- Compatible with LEDVANCE VIVARES DALI light management system
Areas of application
- Integration of non-dimmable luminaires in DALI lighting systems (DT7)
Product features
- Pre-mounted endcap with strain relief function for flexible product installations
- Suitable for high inrush currents up to 350 A
- Fulfills the requirements for DALI Device Type 7 - switching function
- Switching of non-dimmable loads up to 16 A via DALI
- Suitable for loads with high inrush current
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For current information see www.ledvance.com/light-management-systems
Electrical data
| Nominal wattage | 3000.00 W |
| Nominal voltage | 230 V |
| Type of current | AC |
| Nominal current | 16 A |
| Inrush current | 350 A |
| Mains frequency | 50…60 Hz |
Dimensions & Weight
| Length | 120.00 mm |
| Width | 30.00 mm |
| Height | 22.00 mm |
| Cable cross-section, input side | 0.5…1.5 mm² |
| Cable cross-section, output side | 0.5…2.5 mm² |
| Wire preparation length, input side | 8.5…9.5 mm |
| Wire preparation length, output side | 8.5…9.5 mm |
| Product weight | 54.00 g |
Colors & materials
| Product color | White |
| Body material | Polycarbonate (PC) |
Temperatures & operating conditions
| Ambient temperature range | -20…+60 °C |
| Maximum temperature at tc test point | 65 °C |
Lifespan
| Number of switching cycles | 100000 |
Additional product data
| Product remark | Available from December 2025 |
| Number of control outputs | 1 |
Capabilities
| Dimmable | Yes |
| Dimming interface | DALI-2 |
| Overheating protection | Reversible |
| Type of installation | Independent mounting |
| Reverse polarity protection | Yes |
| Over voltage protection | Yes |
Certificates & Standards
| Standards | CE, UKCA |
| Protection class | II |
| Type of protection | IP20 |
LOGISTICAL DATA
| Temperature range at storage | -20…+75 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854709135 | Folding box 1 |
33 mm x 163 mm x 24 mm | 66.00 g | 0.13 dm³ |
| 4099854709142 | Shipping box 100 |
337 mm x 257 mm x 184 mm | 6770.00 g | 15.94 dm³ |
User instruction / safety instructions
RELAY DALI 2 CM
RELAY DALI 2 CM
Legal information
Safety Insert G11201420
Safety Insert G11201420
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Legal Insert G11185544
Legal Insert G11185544
Declarations of conformity
CE declaration RELAY DALI-2
CE declaration RELAY DALI-2

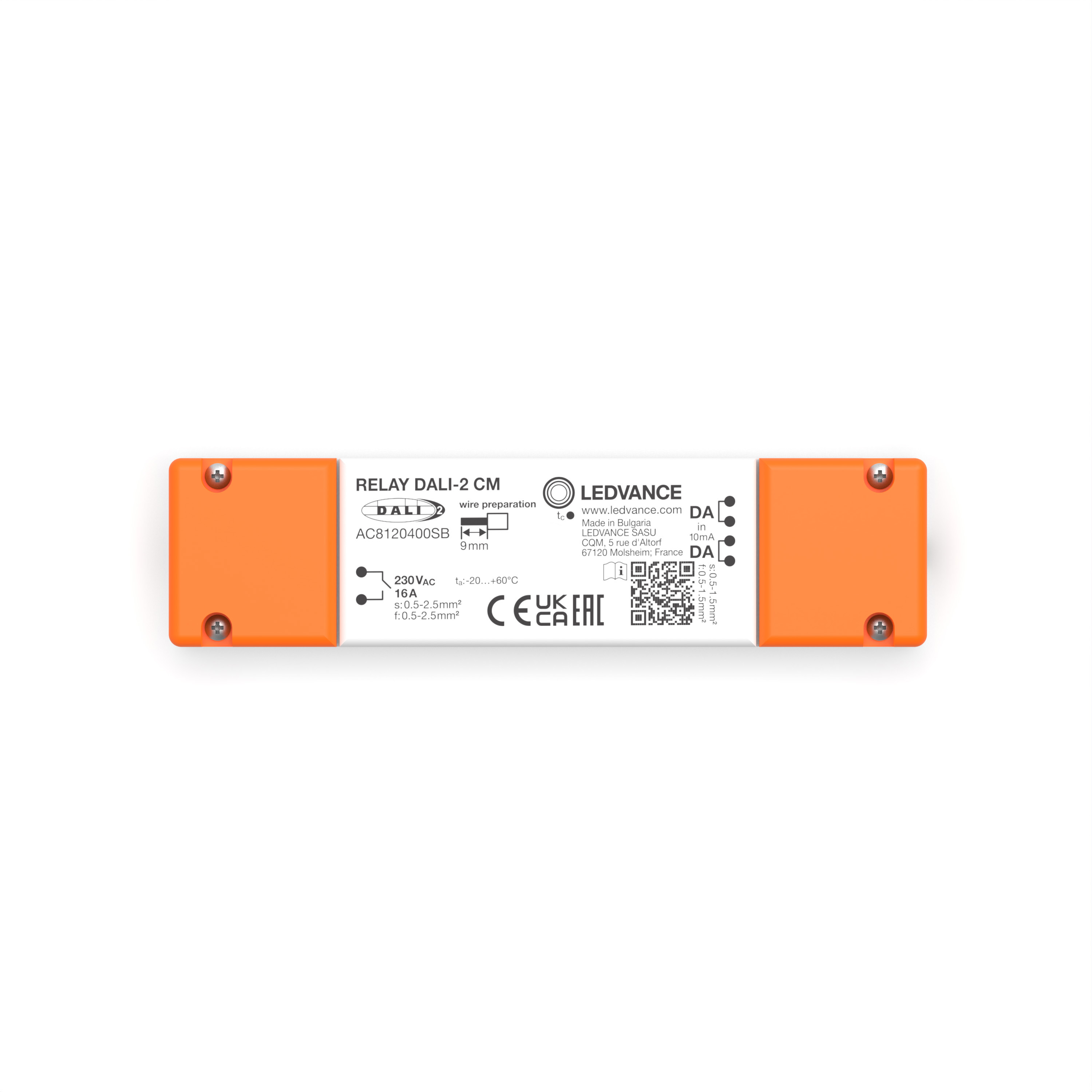

Product image: white background, upright
